Performance Characteristics

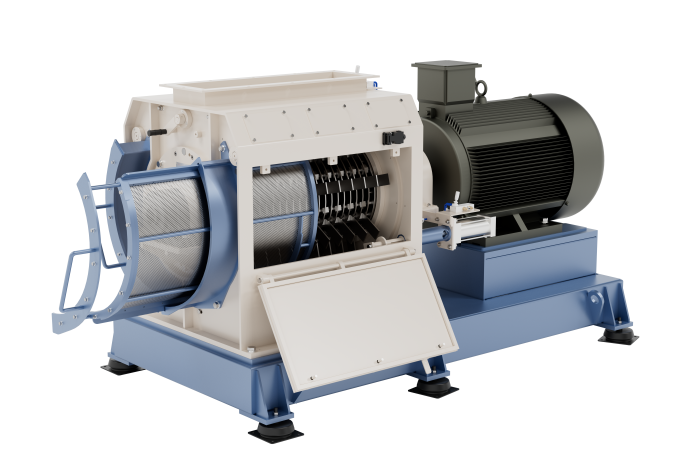

-On-line quick screen change design, improve screen change efficiency;
-Screen track anti-card material design, screen loading more smoothly;
-Up to 3000 rpm/3600rpm (60 HZ), improve the grinding fineness and grinding efficiency;
-Reasonable feed and hammer design, destruction and crushing circulation;
-Equipped with SKF progressive self-lubricating bearing and bearing seat;
-Integral heavy finish milling anti-vibration base, better stability.
Application
The FSBP series non-stop screen-changing grinder can be used for fine grinding in pet food and fish feed processing, and can also be used for coarse grinding in compound feed, flour processing and biomass processing.
Processed material properties:
-the size of granule
Crushed, ≤60mm long
Finely crushed, <10mm long
-Bulk weight 0.2-0.8kg/dm3
-Moisture content ≤15%
-Crushed sieves
Finely crushed, circular mesh size 0.8-2.0mm
Coarse crushing, circular mesh size 2.0-10.0mm
Specification
| Product Model | FSBP70×85 | FSBP70×120 | FSBP70×160 |
| Main Engine Power (kw) | 90/110/132 | 160/200/250 | 250/315/355 |
| Capacity (t/h)Φ0.8mm | 5-10 | 8-15 | 10-20 |
| Capacity (t/h)Φ2.0mm | 10-20 | 15-30 | 25-45 |
